1. Monomers: Plastic Building Blocks
2. From Monomer to Polymer
3. Addition Polymerization
4. Condensation Polymerization
5. Chain Length and Molecular Weight
6. Branching in Polymer Chains
7. Cross-Linking and Network Plastics
8. Crystallinity and Amorphous Regions
9. Flexibility, Strength, and Heat
10. Recyclability and Structure

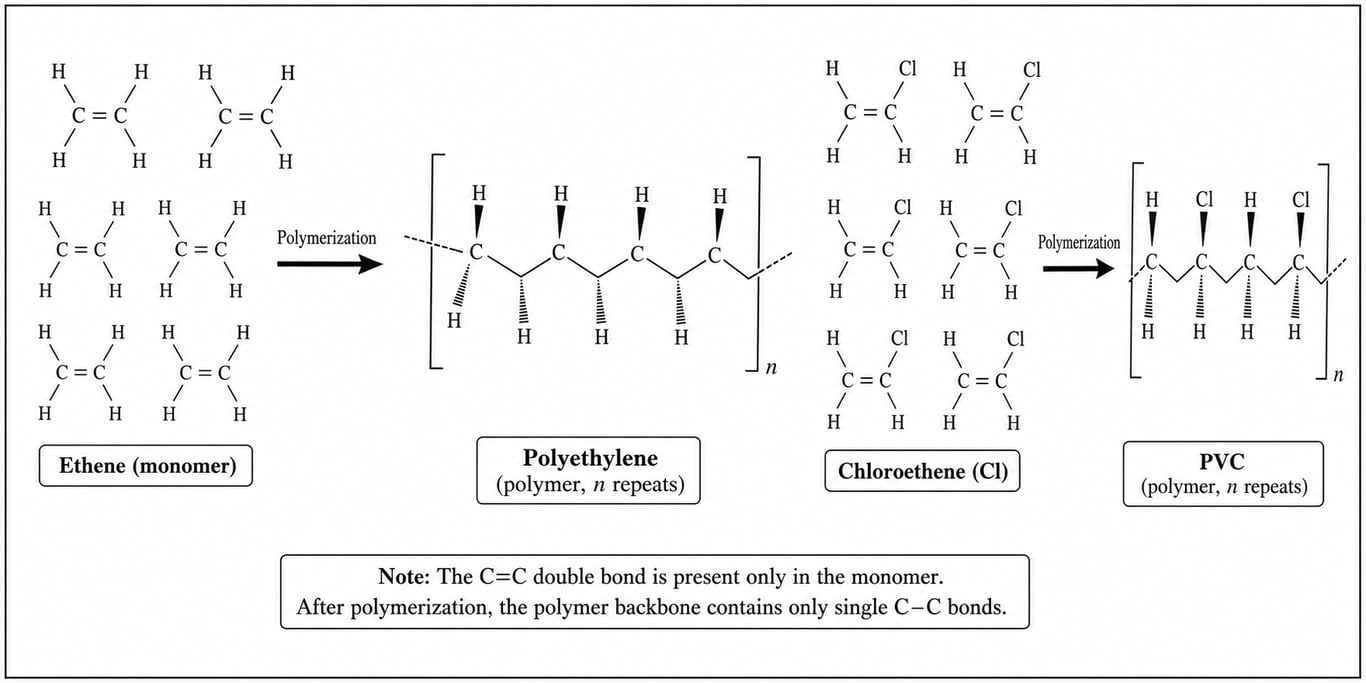

1. Monomers: Plastic Building Blocks
Loading equations
Why do small monomer changes matter so much?
A small change can alter polarity, size, chain packing, and intermolecular forces, which strongly affects the final plastic.
Are all monomers gases or liquids?
No. Some are gases, some liquids, and some solids, depending on their size and intermolecular forces.
Monomer: A small molecule that can chemically join with many similar molecules to make a polymer.
Repeating unit: The small pattern of atoms that appears again and again along a polymer chain.
Double bond: A bond sharing two pairs of electrons, often opened during addition polymerization.
Polyethylene: A common plastic made from many joined ethene units.
Like
Add Comment

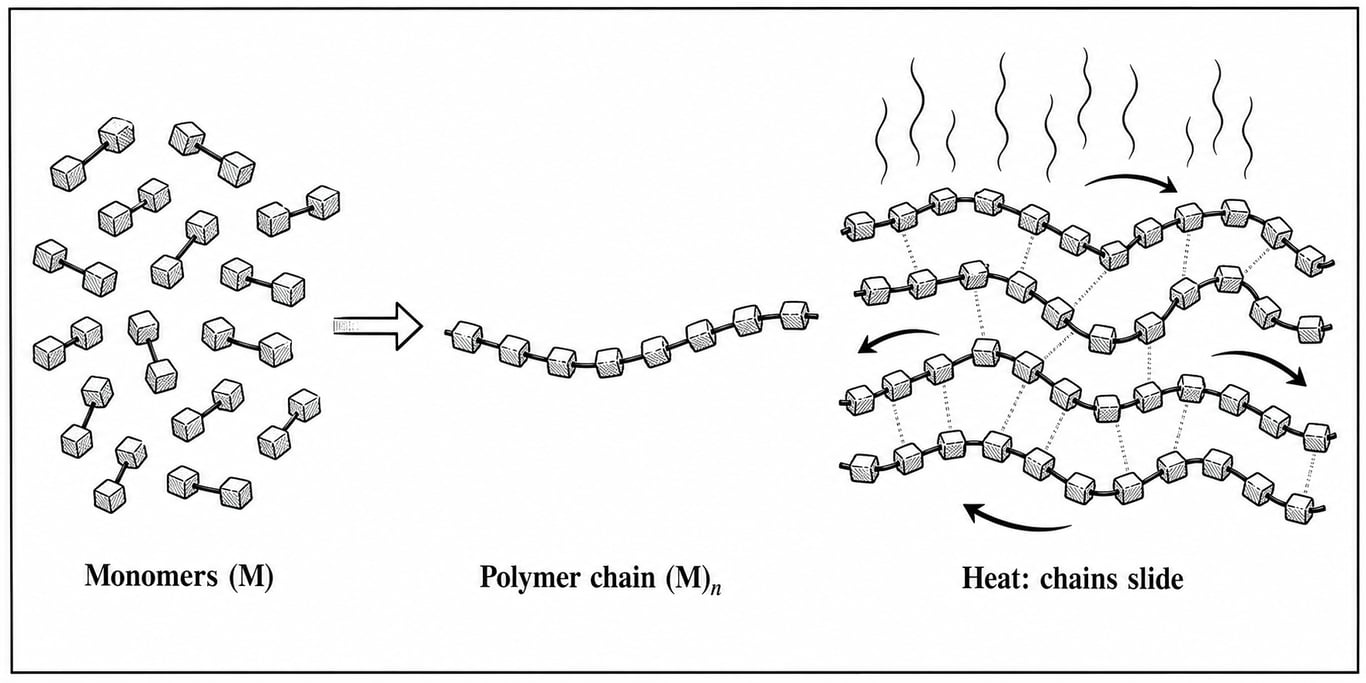

2. From Monomer to Polymer
Loading equations
Why does a polymer not behave like its monomer?
Its huge size, chain entanglement, and repeated attractions create new properties such as toughness and flexibility.
Do polymers always form straight chains?
No. They may be linear, branched, cross-linked, or arranged in more complex structures.
Polymer: A very large molecule made from many repeating units joined together.
Covalent bond: A strong chemical bond where atoms share electrons.
Intermolecular force: An attraction between separate molecules or chains, usually weaker than covalent bonds.
Chain mobility: The ability of polymer chains or chain sections to move, slide, or rotate.
Like
Add Comment

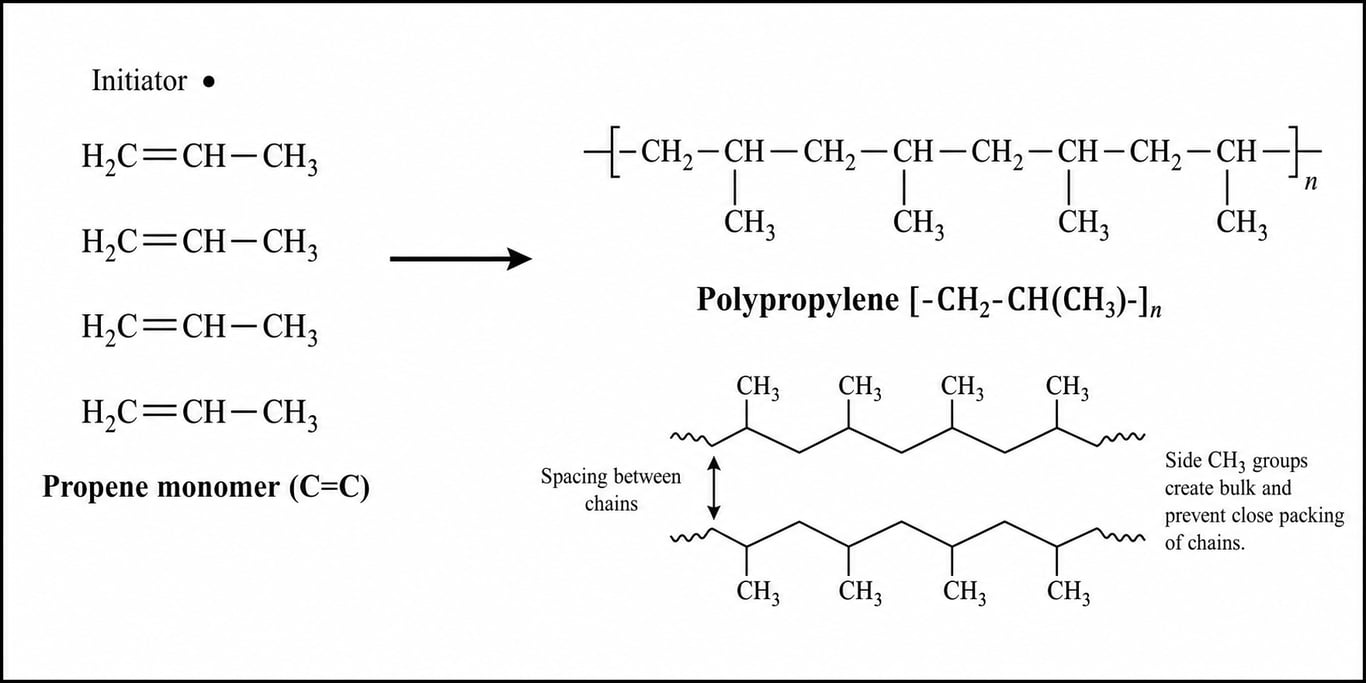

3. Addition Polymerization
Loading equations
Why are double bonds useful in addition polymerization?
They can open to form new bonds, allowing monomers to connect into a long chain.
Does addition polymerization create waste molecules?
In the main joining step, it usually does not produce small by-products, unlike condensation polymerization.
Addition polymerization: Polymer formation where unsaturated monomers join without producing a small by-product.
Initiator: A substance that starts the chain reaction by creating a reactive site.
Side group: An atom or group attached to the polymer backbone that influences properties.
Backbone: The main chain of atoms running through a polymer molecule.
Like
Add Comment

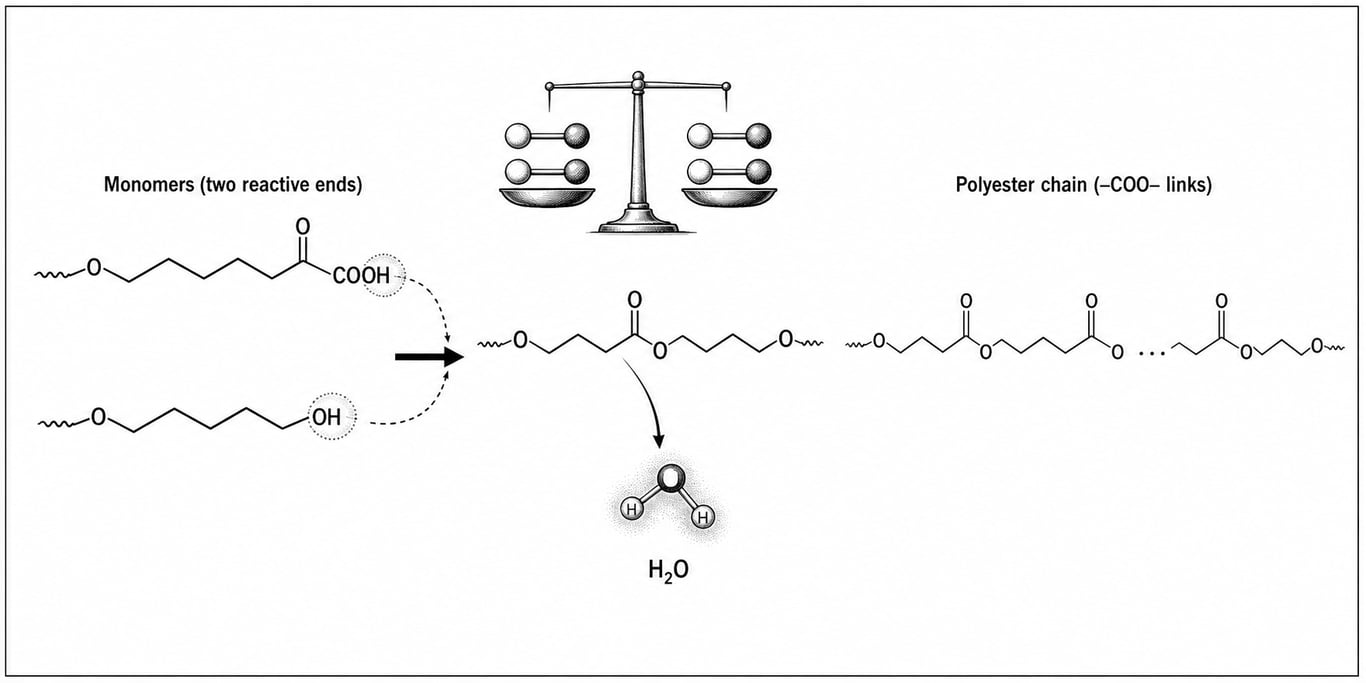

4. Condensation Polymerization
Loading equations
Why must condensation monomers have two reactive ends?
Two ends allow each monomer to connect in both directions and build long chains instead of short pairs.
Is PET made by condensation polymerization?
Yes. PET is a polyester formed from monomers that create ester links, with small molecules removed during formation.
Condensation polymerization: Polymer formation where monomers join and release a small molecule as a by-product.
Functional group: A reactive group of atoms, such as alcohol or carboxylic acid, that controls reactions.
Ester link: A chemical connection formed between an acid and an alcohol group.
Polyamide: A polymer containing amide links, such as nylon.
Like
Add Comment

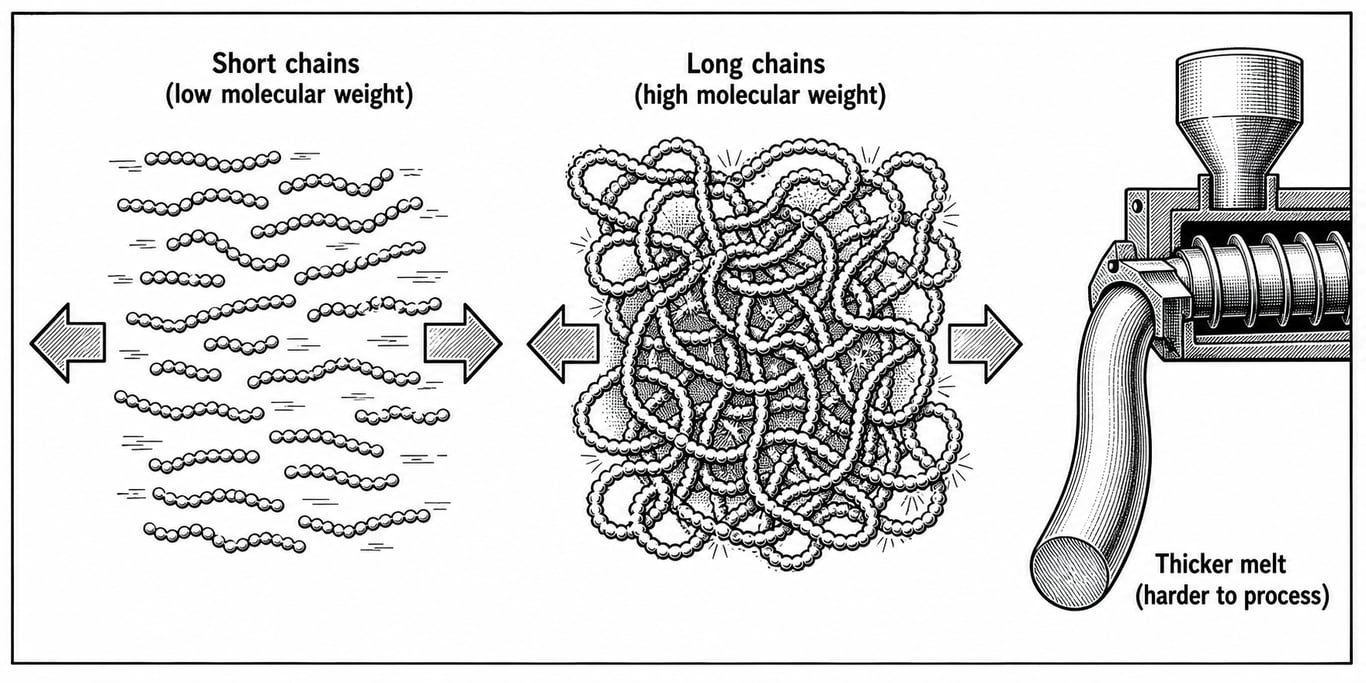

5. Chain Length and Molecular Weight
Loading equations
Can a polymer chain be too long?
For use, long chains are often beneficial, but during manufacturing they can make the melt too viscous to shape easily.
Why do plastics have average molecular weights?
Polymerization produces chains of different lengths, so measurements usually describe an average rather than one exact size.
Chain length: The number of repeating units in a polymer molecule.
Molecular weight: The mass of a polymer molecule or average mass of many chains.
Entanglement: Physical tangling of long chains that resists movement and adds toughness.
Viscosity: Resistance to flow, especially important when molten plastic is processed.
Like
Add Comment

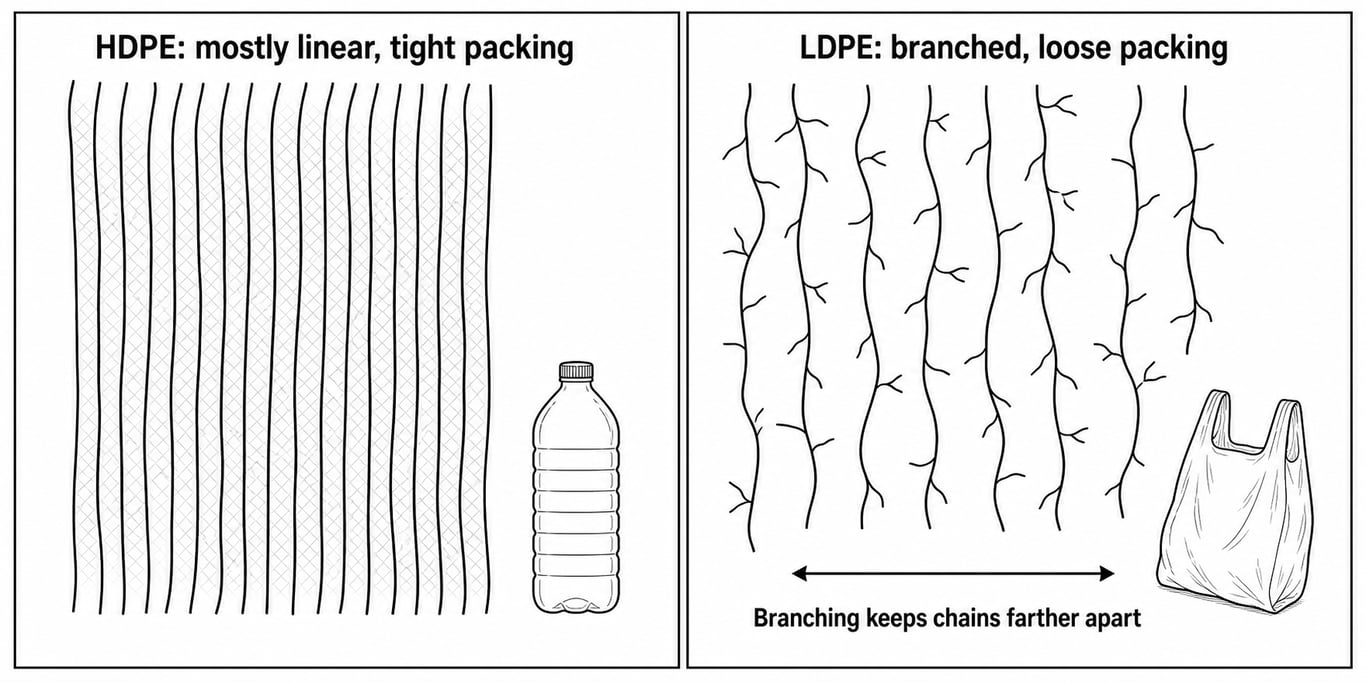

6. Branching in Polymer Chains
Branching occurs when smaller side chains grow from the main polymer backbone, changing how closely neighboring chains can pack together. A linear polymer is like a straight cord that can lie close to other cords, while a branched polymer is more like a cord with twigs that keep chains farther apart. This difference is clear in polyethylene: high-density polyethylene has mostly linear chains, packs tightly, and is strong and stiff, while low-density polyethylene has many branches, packs less tightly, and is softer and more flexible. Branching lowers density and often lowers melting temperature because the chains cannot form as many orderly regions. However, branching can improve impact resistance and make films easier to stretch. The number, length, and placement of branches all matter, so “branched” is not a single structure but a family of chain shapes with different physical effects.
Why is LDPE more flexible than HDPE?
LDPE has more branching, which prevents tight packing and lets chains move more easily.
Does branching always weaken plastic?
Not always. It may reduce stiffness but can improve stretchability and impact resistance depending on the use.
Branching: Side chains attached to the main polymer backbone.
Linear polymer: A polymer with little or no branching along the main chain.
Density: Mass per unit volume, often higher when chains pack closely.
Packing: How closely and regularly polymer chains fit together.
Like
Add Comment
7. Cross-Linking and Network Plastics

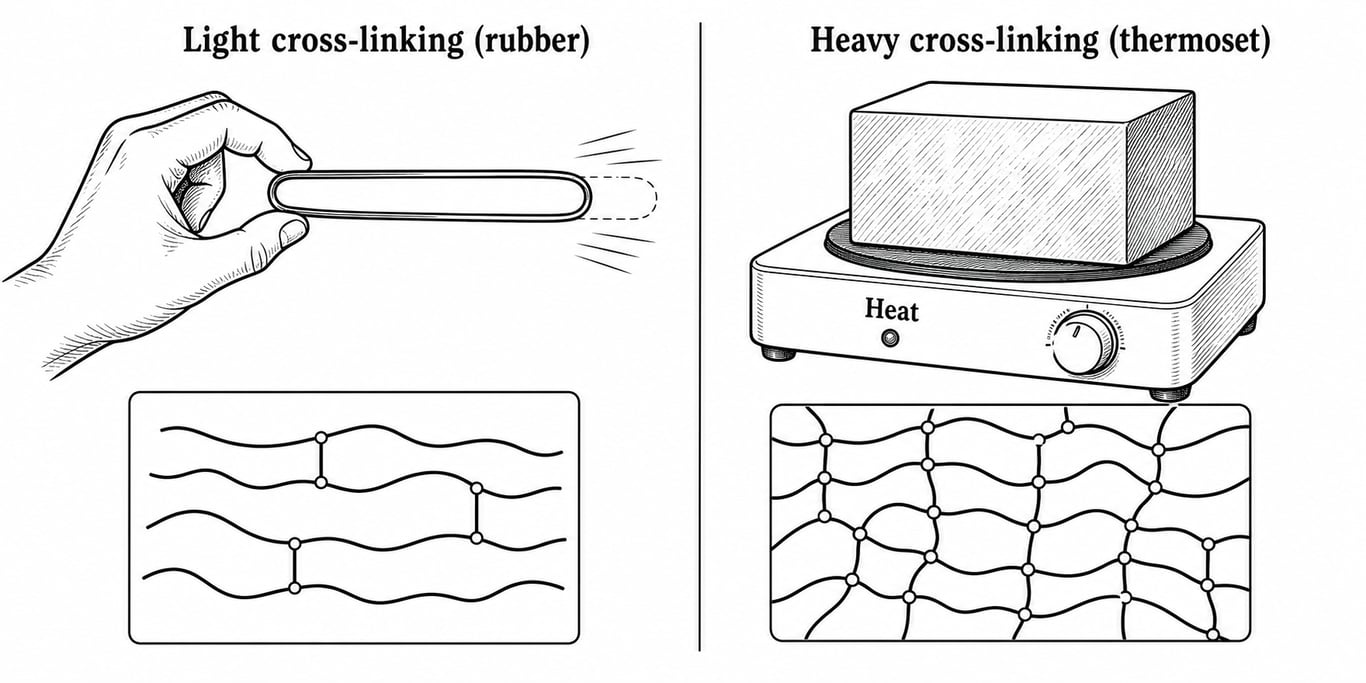

Cross-linking forms chemical bridges between separate polymer chains, turning individual chains into a connected network. Light cross-linking can make a rubbery material spring back after stretching because chains cannot slide away permanently. Heavy cross-linking makes a plastic hard, heat resistant, and difficult to melt because the network is tied together by covalent bonds. This is the key difference between many thermoplastics and thermosets: thermoplastics soften when heated because chains can move, while thermosets do not simply melt because their chains are locked into a three-dimensional network. Examples include vulcanized rubber, epoxy resins, and phenolic plastics. Cross-linking improves shape stability, chemical resistance, and creep resistance, but it usually makes recycling harder because the material cannot be remelted into new shapes without breaking chemical bonds.
Why do thermosets not melt like thermoplastics?
Their cross-linked networks prevent chains from flowing freely when heated.
Can cross-linked plastics be recycled?
They are difficult to recycle by melting, but some can be ground, chemically treated, or reused as fillers.
Cross-link: A chemical bridge connecting one polymer chain to another.
Network polymer: A polymer structure where many chains are joined into a large connected structure.
Thermoset: A plastic that becomes permanently set and does not melt normally after curing.
Creep: Slow permanent deformation under a constant force over time.
Like
Add Comment
8. Crystallinity and Amorphous Regions

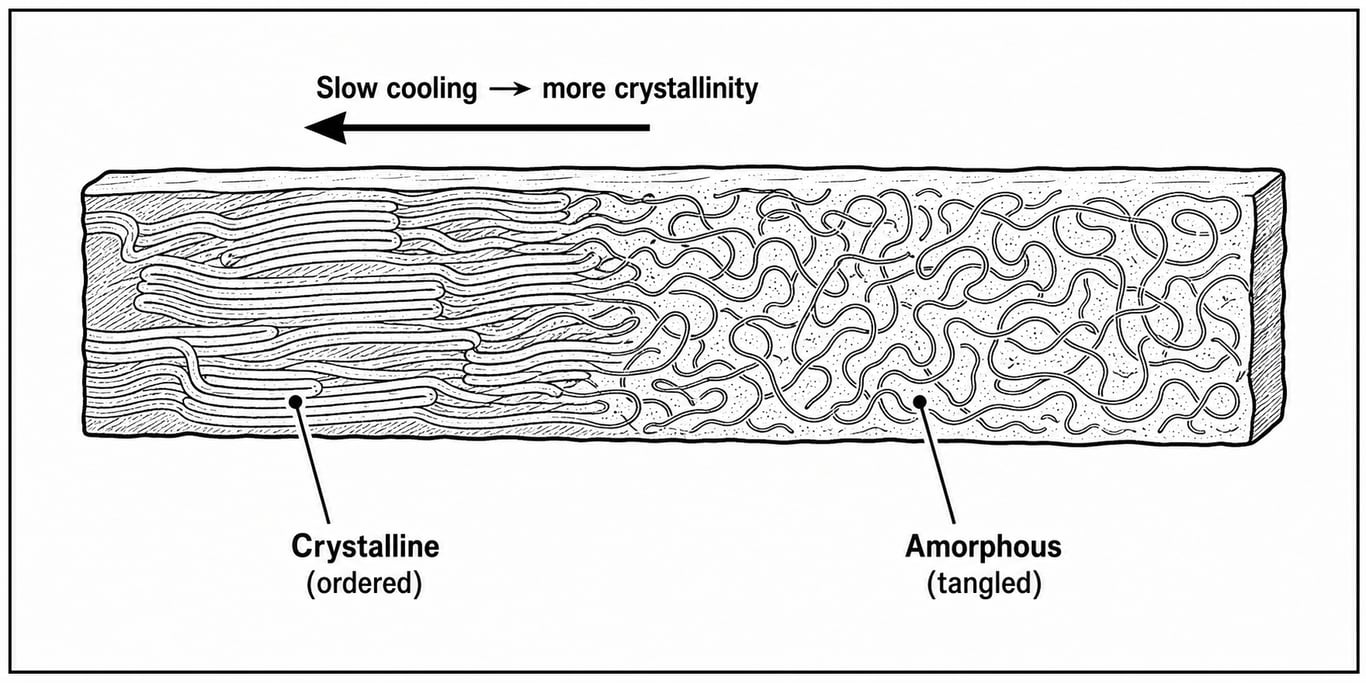

Polymer chains can arrange in ordered crystalline regions or disordered amorphous regions, and most plastics contain a mixture of both. Crystalline regions form when chain sections line up neatly and pack closely, giving higher density, stiffness, chemical resistance, and a sharper melting point. Amorphous regions are tangled and randomly arranged, so they usually allow more transparency, flexibility, and gradual softening. No common plastic is perfectly crystalline because long chains twist, fold, branch, and tangle. Polyethylene and PET can be partly crystalline, while polystyrene is usually mostly amorphous. Cooling speed also matters: slow cooling gives chains more time to line up, while fast cooling can trap disorder. Crystallinity therefore connects molecular arrangement to everyday behavior, explaining why the same plastic may be clear or cloudy, flexible or stiff, depending on how it was processed.
Why are some plastics cloudy?
Crystalline regions can scatter light, making a plastic look cloudy or white.
Can processing change crystallinity?
Yes. Cooling rate, stretching, and heat treatment can increase or decrease ordered chain regions.
Crystallinity: The degree to which polymer chains are arranged in ordered, packed regions.
Amorphous region: A disordered region where chains are randomly arranged.
Melting point: Temperature at which crystalline regions lose their ordered structure.
Transparency: Ability to let light pass through, often reduced by many crystalline regions.
Like
Add Comment

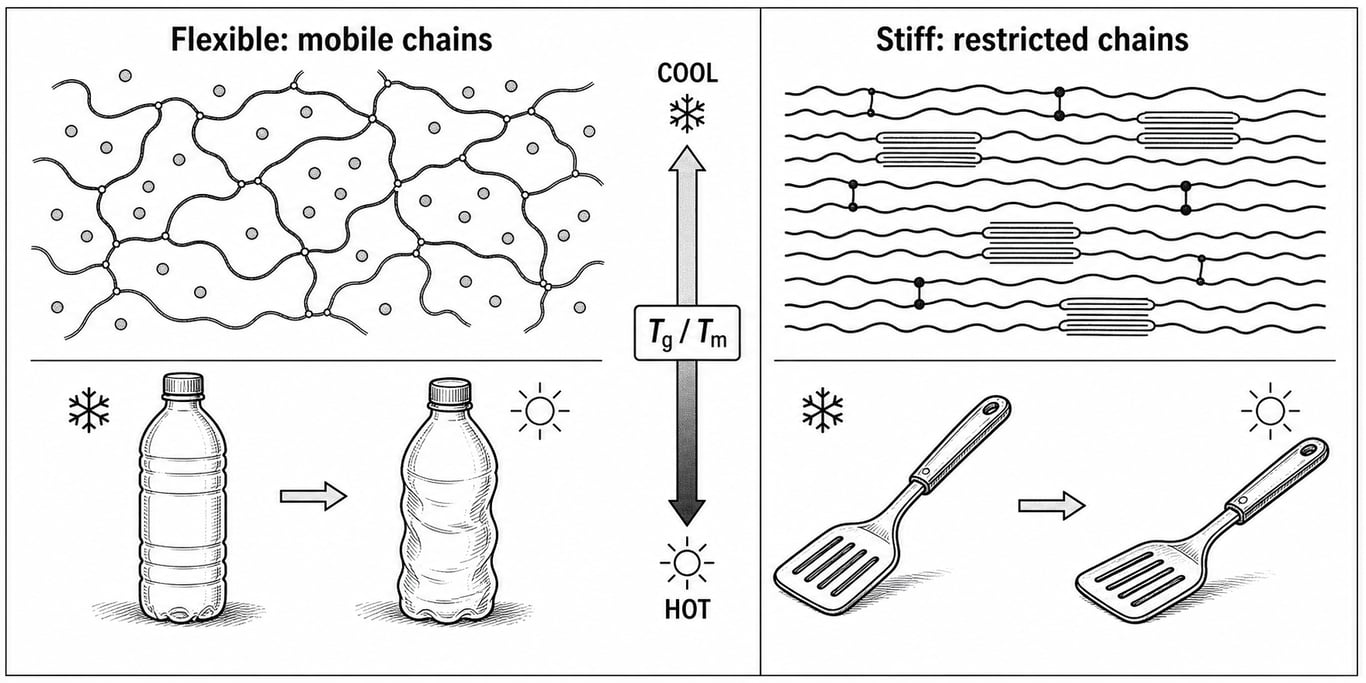

9. Flexibility, Strength, and Heat
Loading equations
Why can one plastic be bendy and another stiff?
Their chain shapes, attractions, crystallinity, and additives allow different amounts of molecular movement.
What is the difference between softening and melting?
Softening often involves increased motion in amorphous regions, while melting breaks ordered crystalline regions.
Glass transition temperature: The temperature range where amorphous chain regions change from hard and glassy to softer and more mobile.
Melting temperature: The temperature where crystalline regions break apart and become mobile.
Plasticizer: An additive that increases chain spacing and flexibility.
Polarity: Uneven charge distribution in bonds or molecules that can increase attractions between chains.
Like
Add Comment

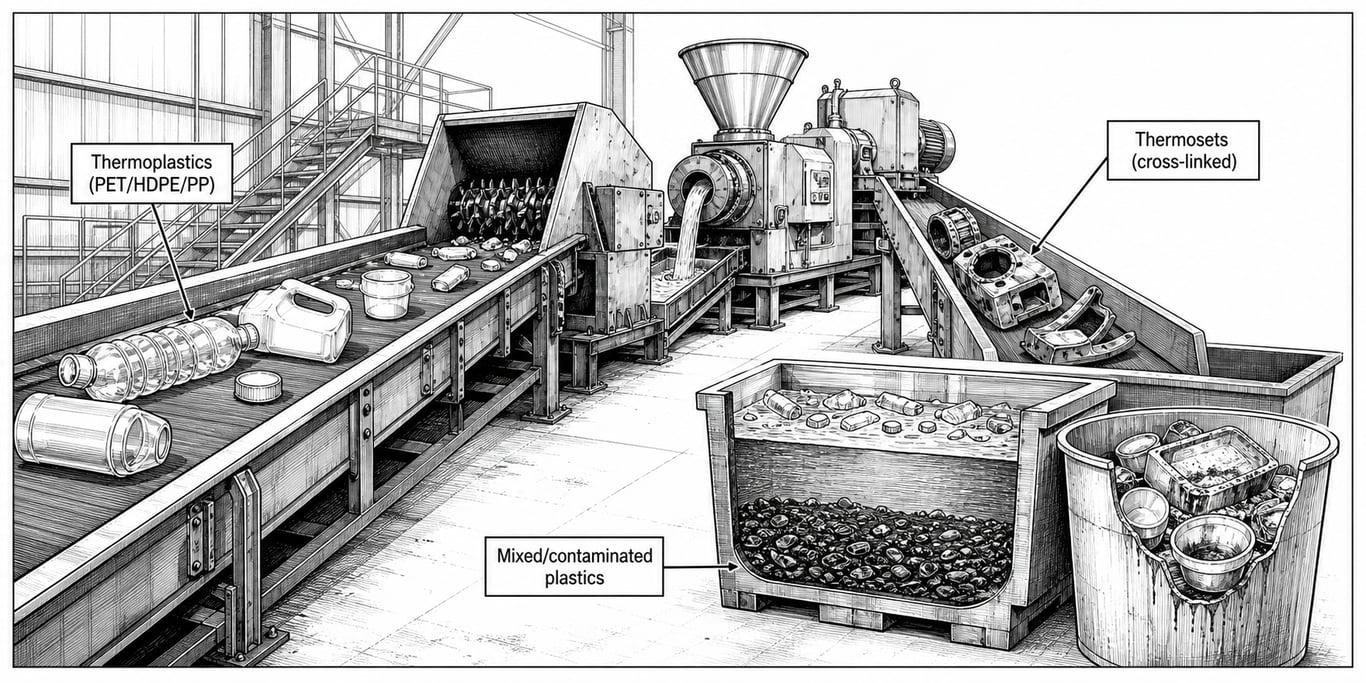

10. Recyclability and Structure
A plastic’s recyclability depends strongly on its chemical structure and how it responds to heat, mixing, and contamination. Thermoplastics such as PET, HDPE, and PP can often be mechanically recycled because heating allows chains to move and the material can be remolded. However, repeated heating, oxygen exposure, and mechanical stress can shorten chains, reducing strength and toughness. Thermosets and heavily cross-linked plastics are much harder to recycle because they cannot flow like melted thermoplastics. Mixed plastics are also difficult because different polymers may not blend at the molecular level, much like oil and water separating. Additives, dyes, fillers, and food residues further complicate recycling. Chemical recycling aims to break polymers back into monomers or useful molecules, but it requires energy and careful sorting. Designing plastics with simpler structures and fewer incompatible additives can improve future recycling.
Why are recycling symbols not a guarantee of recyclability?
They identify plastic type, but local equipment, contamination, color, additives, and market demand affect whether it is actually recycled.
Why does recycled plastic sometimes become weaker?
Heat and processing can shorten chains or add damage, reducing molecular weight and mechanical performance.
Mechanical recycling: Recycling by sorting, melting, and reshaping thermoplastic materials.
Chemical recycling: Breaking polymers into monomers or smaller useful chemicals.
Contamination: Unwanted materials that reduce recycling quality or interfere with processing.
Compatibility: The ability of different plastics to mix evenly without separating or weakening.
